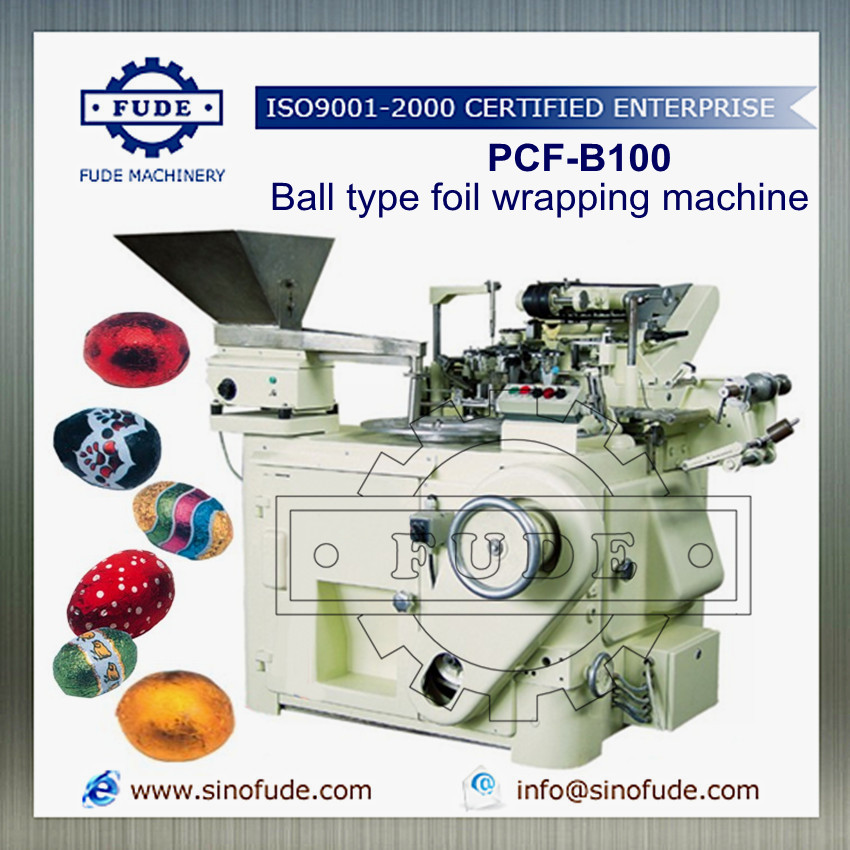

FCFB100 Ball type foil wrapping machine

FCFB100 Ball type foil wrapping machine
Product name : FCFB100 Ball type foil wrapping machine
Model : FCFB100
Details :

 Introduction:

This machine is designed and manufactured according to the practice experience and excellent technology.

The cam mechanism with gear is droved by a 3-phase asynchronous motor.

The wrapping disk with seven-position moves intermittently.

Shower distributes the lubrication automatically and the lubricant oil is in a removable pallet.

Size changing and production starting are very rapid because the parts are positioning accurately and it is no need to change or adjust. Replacing supply paper wheel is fast easy.

All parts whose contacts with the products are made of non-toxic materials that is suitable to use in food.

TECHNICAL DATA

Wapping speed          80 ~ 120 pieces per minutes based on the different wrapping material.

Power supply            380VAC±10% 50Hz

Total power consumption   approx 2kw

Noise level              lens than 75bB

Standard color            Milky- white

Dimension               1800*1700*1400mm

Weight                  approx 1000kg

Wrapping materials        aluminum
